216C 250V Glass Sealed NTC 100k Thermistor Temperature Sensor 18AWG

Product Description

216C 250V Glass Sealed NTC 100k Thermistor Temperature Sensor 18AWG

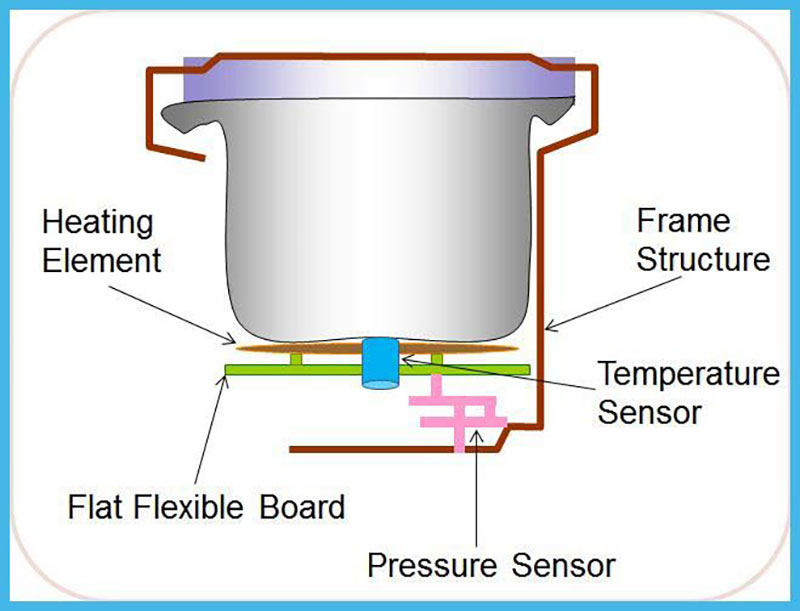

Glass Sealed Thermistor Temperature Sensors 100K 3950 For Electric Pressure Cooker

Introduction Of The Glass Sealed Thermistor Temperature Sensors 100K 3950

Sealing with high accuracy ntc thermistor and thermal fuse ,stable performance;Food grade metal housing, conform to international standards and universal for all electric pressure cooker and rice cooker

Features Of The Glass Sealed Thermistor Temperature Sensors 100K 3950

► Sealing with high accuracy component ,stable performance;
► Food grade metal housing, conform to national standards;
► Various color ,shape ,size optional, match different products’ installation;
► Stable work at high temperature and high pressure status, working life live up to national standards.

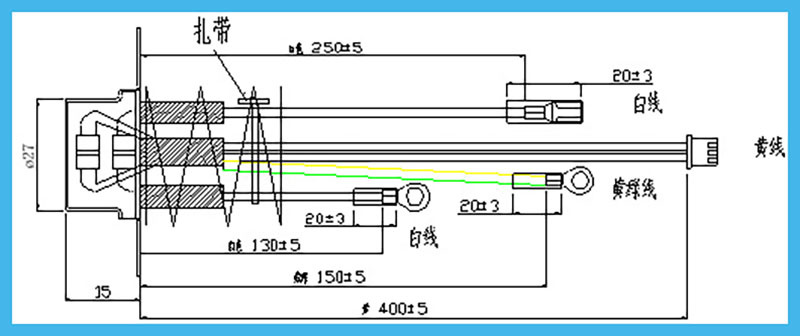

Outline Dimension Of The Glass Sealed Thermistor Temperature Sensors 100K 3950   (Unit:mm)

NOCOMPONENTMATERIAL AND SPECIFICATIONSQ'TYREMARK
2-1.ElementR25=100KΩ±1% B25/50=3950±1% DD1
SM182A0 216℃ 250V 10A CCC1
2-2.Housing48.2×ø60+ø27.5+ø34(High 15mm) Aluminum,1
Inside the card ø 26*0.5+19 Y046J-A(Iron)1
wild card 1.5×0.8 ground wire Y137H-A(Aluminum),1
ø30.0×ø32×1.0 Stainless steel spring Y0143H-A1
2-3.CoatingThermal conductive siliconeWhite
2-4.Lead WireUL 3122# 18AWG*1C 200℃ 300V Braided wire(Red),2
UL 3122# 18AWG*1C 200℃ 300V Braided wire(Green / yellow)2
UL 1332# 24AWG*1C 200℃ 300V (yellow)2
2-5.CasingPTFE Casing L=70mm, Inside the outer plastic fibers Φ6.5*4.6 L1=70mm, L2=25mm ,ø3.5 L=15mm*2(ring terminal)7
2-6.TieCable Ties1White
2-7.Copper stripRiveting copper strip : 6.0 (riveting fuse), 4.0 (riveting Ground wire),2.0 (Riveting resistance wire)6
2-8.TerminalXH-2.54 & XH-3Y3White
187 Straight lock terminals (Riveting fuse the long end),187 protect the casing(blue)1
4.2*16.5 Ring terminal *2(Ground wire end + Fuse(short end))1

NOTES
Customization for cable specification is available according to customers’ requirement(L2≥50mm,L3≥50mm)
Insulation sleeve can be installed according to customers’ requirement
The size of sensor housing(D≥5.0,L≥30) can be designed according to customers’ actual requirement
L3 is ground line,can be canceled according to customers’ requirement

Specification Of The Glass Sealed Thermistor Temperature Sensors 100K 3950

NOItemSignTest ConditionsMin.Normal valueMax.Unit
4-1.Resistance at 25℃R25Ta=25±0.05℃PT≦0.1mw99.0100.0101.0kΩ
4-2.B ValueB25/50 3910.539503989.5k
4-3.Dissipation factorσTa=25±0.5℃2.5//mw/℃
4-4.Time constantτTa=25±0.5℃//20sec
4-5.Insulation resistance/500VDC100//MΩ
4-6.Withstand voltage/1500V AC5//Sec
4-7.Operating temp.range//-30/+200℃
