Grooved Ball Valve Full Port

Yongyuan can supply grooved ball valve full port from China. The ball valves are intended for use in full open or shut-off service. Flow may be from either direct, the valve can be positioned in any orientation. Grooved end dimensions conform to AWWA C606.

2”-3”: 1000psi and 4”: 750psi

High Grade Ductile Iron With Better Corrosion

Resistance And Greater Yield Strength

RPTFE seats

Nace Valves with 420 Stainless Steel Ball And Stem

Locking Device Standard

Grooved Dimensions Conform To ANSI/AWWA C606

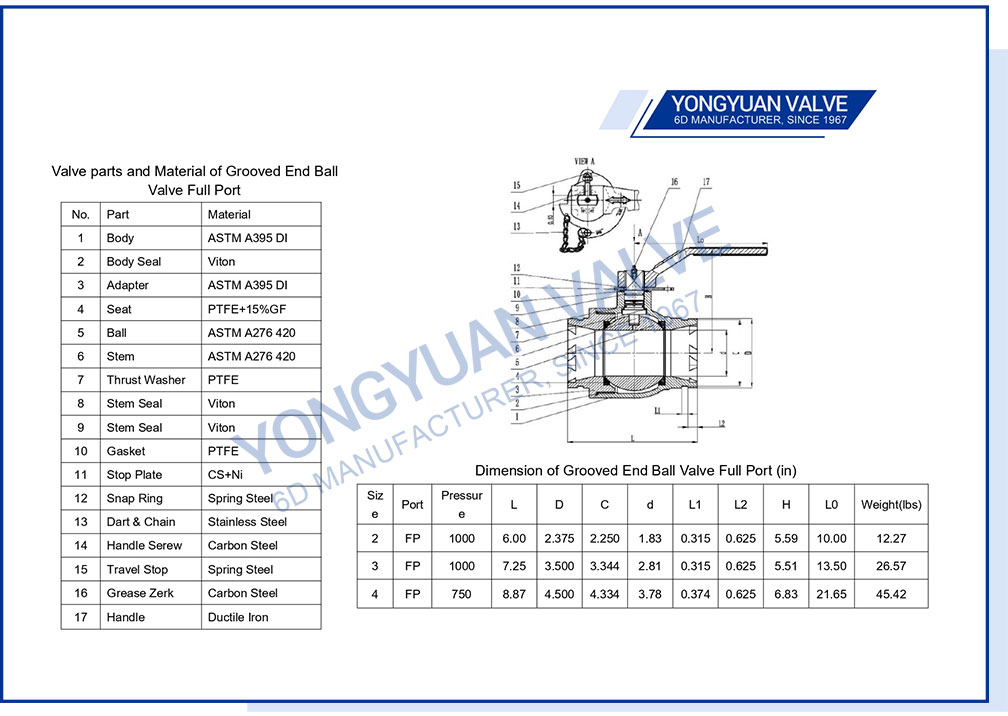

Material & Size

Grooved End Ball Valve Full Port - Grooved Ball Valve Full Port

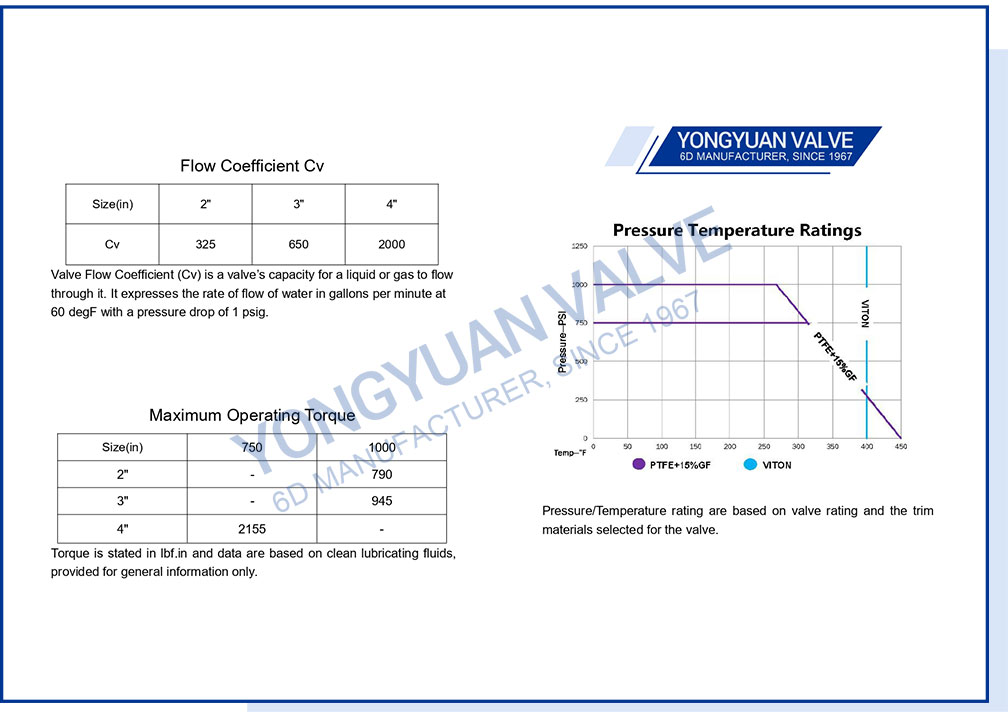

Engineering Data

Grooved End Ball Valve Full Port - Grooved Ball Valve Full Port

FAQ

Q: What’s the advantage of full port structure?

A: Yongyuan grooved ball valve full port offers up to 1/3 better flow comparing with standard port valve.

Q: What about the working pressure?

A: 2”-3” reaches 1000psi and 4” is 750psi.

Q: Where do the cast iron body produced?

A: In our factory, we have our own casting workshops.
